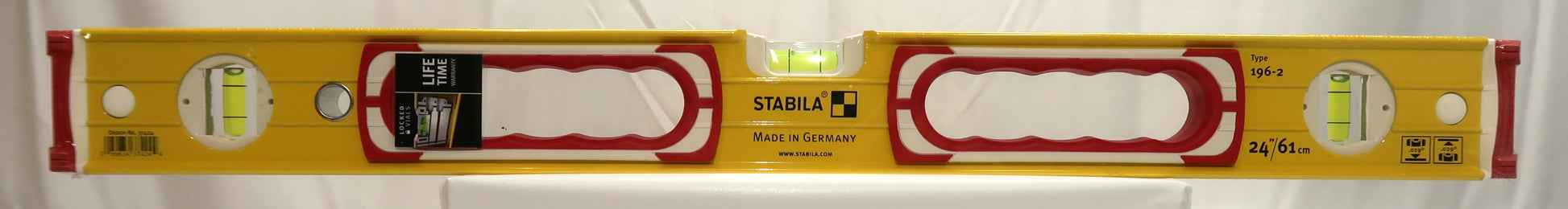

Stabila 37424 24" Type 196-2 Box Level
Stabila 37424 24" Type 196-2 Box Level
-
Certified Accuracy — ± 1/32 in over 72 in (≈ 0.5 mm per meter) in both normal and reverse positions.
 -
Rigid Box-Beam Aluminum Frame — The Type 196 series uses a rib-reinforced, wide profile frame that resists warping and twisting, increasing durability.
 -
Machined Measuring Surfaces — Top & bottom faces are milled (for 24-inch size) to allow accurate reference surfaces for scribing or positioning.
 -
Three Acrylic Vials — One horizontal (level) vial + two vertical (plumb) vials. These are permanently calibrated, epoxy-locked, crystal clear, with internal spring-steel hairline indicators. They are guaranteed for life and don’t need re-calibration.
 -
Removable Shock-Absorbing End Caps & Wall Grips — End caps protect from drops, prevent slipping on surfaces, and can be removed for flush measurements in corners or tight areas. Wall grip pads help maintain stability without marking surfaces.
 -
Rubber Hand Grips & Hang-Hole — Ergonomic grips allow stable one-hand handling; metal hang-hole lets you store the level off work surfaces.
 -
Electrostatic Enamel Coating — Yellow baked enamel finish for high visibility, resistance to mortar, corrosion, and easier cleaning.

| Spec | Value |
|---|---|
| Length | 24-inch (610 mm) |
| Profile | Box beam, rib-reinforced aluminum |
| Measuring Surfaces | 2 (top & bottom machined surfaces) |
| Number of Vials | 3 (1 horizontal, 2 vertical) |
| Accuracy (Normal/Reverse) | ± 1/32 in @ 72 in |
| Vial Material / Construction | Acrylic block vials, epoxy-locked, with spring steel hairline indicators |
| Finish | Yellow electrostatic enamel |
| Non-magnetic | Yes (standard, non-magnetic version) |
| Warranty | Lifetime voucher on vial accuracy, overall build backed by Stabila reputation |
